These properties are applicable to closed geometric shapes as well as text.

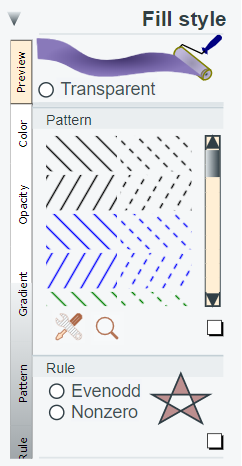

Table 7.2. Fill style properties
| Menu | Property | Description | ||
|---|---|---|---|---|
transparent, color, opacity, gradient. | transparent |
Controls the appearance of filling the form. Sets the
fill property to none (
fill="none"
).
https://www.w3.org/TR/SVG/painting.html#FillProperty
| ||
| color |
Fill solid color. Sets the fill property with a color
(
fill="color"
)..
The color can be selected
from the basic palette, entered in the text field, or set with
the
color chooser svg
panel
available from its icon
| |||
| Opacity | Fill form opacity between 0 (transparent) and 1 (solid). https://www.w3.org/TR/SVG/painting.html#FillOpacityProperty | |||
| gradient |
Gradient applied to the fill form in place of the
solid color. Sets the fill property with a gradient id
(
The gradient
can be customized and selected with the
gradient definition
tool

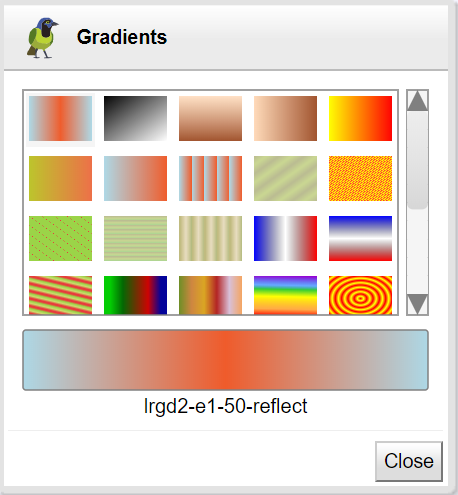

The
gradient can be selected with the chooser tool
| |||
rule | Pattern |
Pattern applied to the fill form in place of the
solid color. Sets the fill property with a pattern id
(
The pattern
can be customized and selected with the
pattern definition
tool

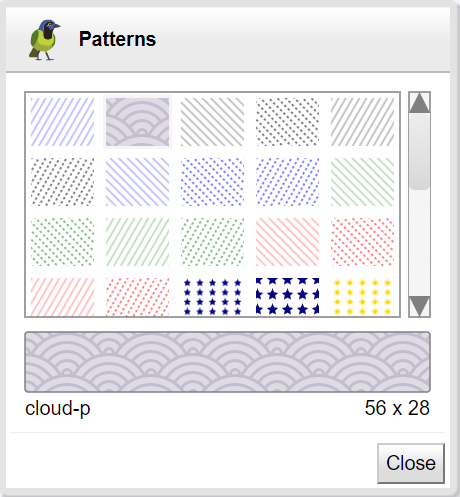

The pattern
can be selected from the drawn list or with the chooser tool
| ||
| rule |
Defines the filling algorithm.
The method evenodd is useful for surfaces with holes. https://www.w3.org/TR/SVG/painting.html#FillRuleProperty |
.
.
.
