3.10. Grid definition

Abstract

This chapter describes how to define the input grid for rounding the (x, y) coordinates of geometric elements.

This function is available from the document menu .

Item Description
Image icon-grid.svg This function allows you to define a grid described in the coordinate system of the SVG document. The grid can be displayed and enabled to capture points of elements.

Table 3.3. Grid definition

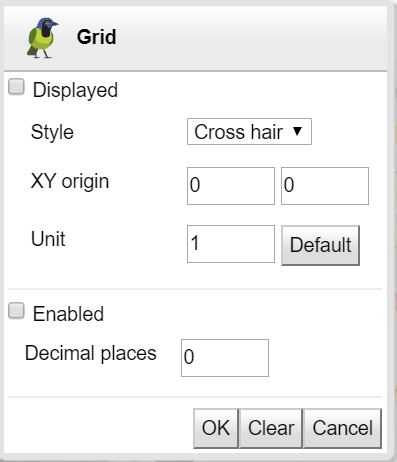

Grid dialog boxGrid capture
Image dlg-grid.png
Image grid.svg

See grid showcase.
