7.4. Marker style properties

These properties are only applicable to forms with support points (line, polyline, polygon, path).

The ‘ marker ’ element defines the graphics that is to be used for drawing arrowheads or polymarkers on a given ‘path’, ‘line’, ‘polyline’ or ‘polygon’ element.

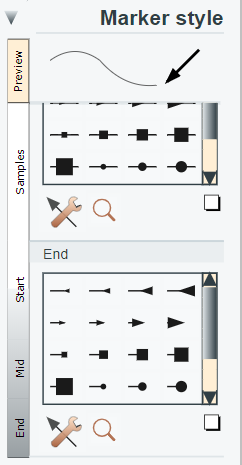

Each marker can be customized with the maker dialog panel launched from it's icon Image marker-cutomize.png

Table 7.4. Marker style properties

Property

Description

samples, end.

mid, start

samples

Offers the most useful markers.

end

Selects the marker to represent the end of the curve.

The gradient can be customized and selected with the marker definition tool Image marker-cutomize.png .

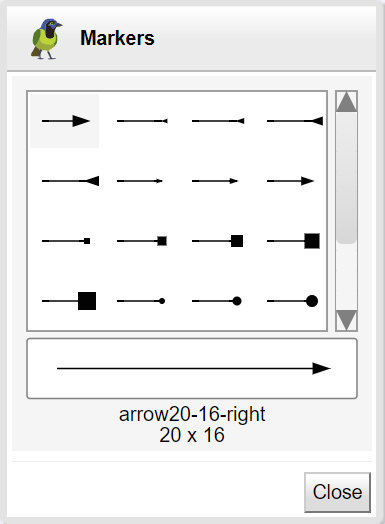

The marker can be selected from the drawn list or with the chooser tool Image svg143.svg .

https://www.w3.org/TR/SVG/painting.html#MarkerEndProperty

mid

Selects the marker to represent each intermediate point of the curve.

The gradient can be customized and selected with the marker definition tool Image marker-cutomize.png .

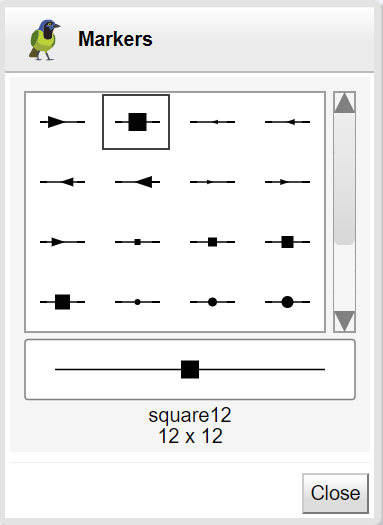

The marker can be selected from the drawn list or with the chooser tool Image svg143.svg .

https://www.w3.org/TR/SVG/painting.html#MarkerMidProperty

start

Selects the marker to represent the origin of the curve.

The gradient can be customized and selected with the marker definition tool Image marker-cutomize.png .

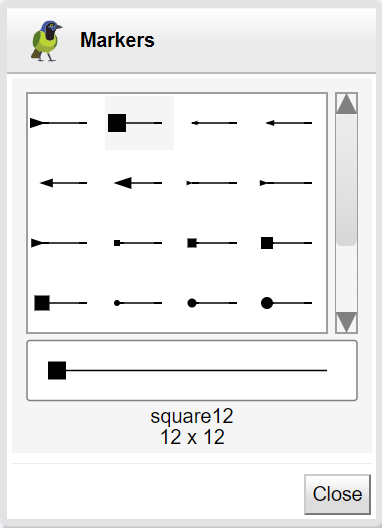

The marker can be selected from the drawn list or with the chooser tool Image svg143.svg .

https://www.w3.org/TR/SVG/painting.html#MarkerStartProperty
