DRAWSVG
user's guide
DRAWSVG
user's guide
This function is available from the document menu .
| Item | Description |
|---|---|
|

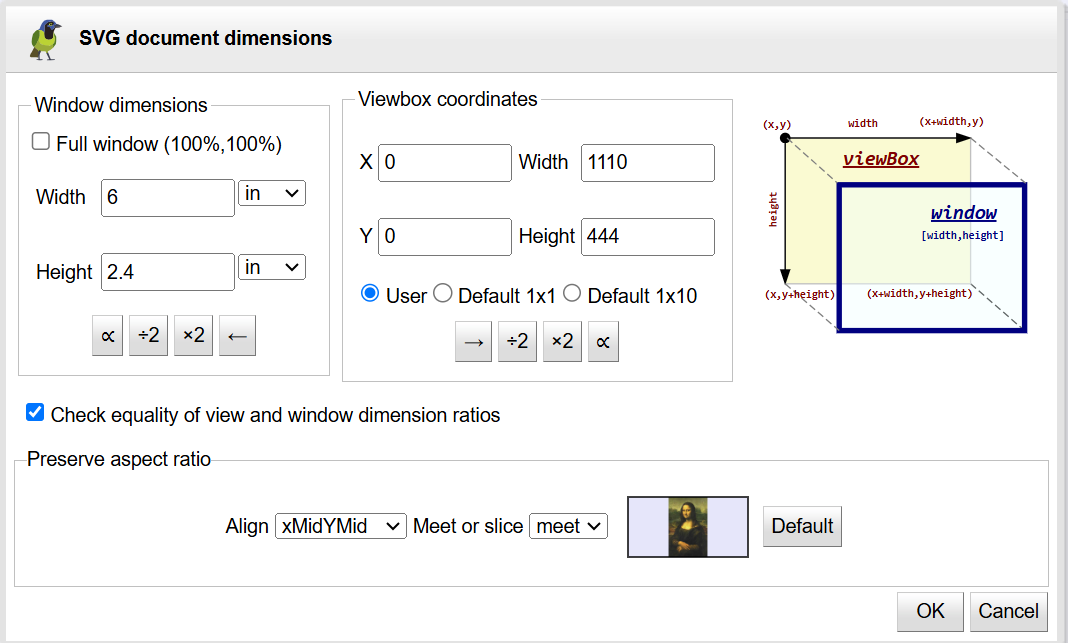

This function creates a new SVG document by specifying its dimensions: the "viewBox" attribute of the SVG document and the window display size. |
The document size is fully characterized by :
The drawing space and it's coordinate system defined by the "viewBox" attribute of the SVG document
The physical dimensions with it's units, width and height of the window or the paper size.
The projection method of the drawing space defined by the attribute "preserveAspectRatio" .
The "Full window" option allows you to define a document whose size occupies the entire display of the document window. Click "apply" to create the document.

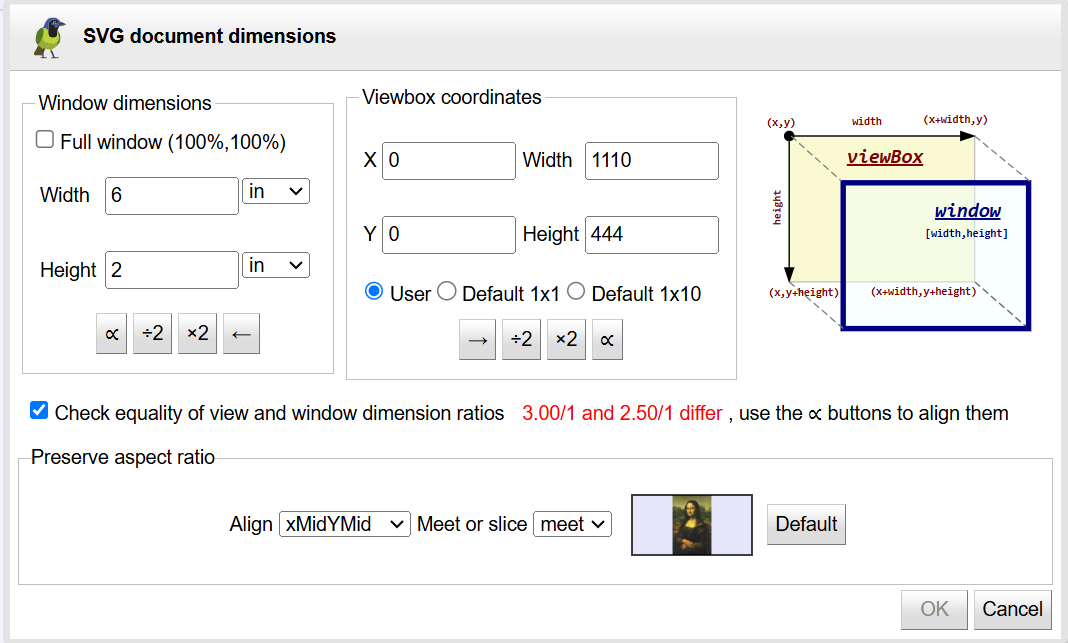

The viewbox coordinates can be defined :
from the window size with one pixel equals one xy unit (default 1x1)
from the window size with one pixel equals one ten xy units (default 1x10)
With specific values (user)
